SIDE CHANNEL PUMP

Side Channel Pump Design:

A Side Channel Pump has rotating vanes combined with a side channel that enhance the transfer of energy into the fluid via secondary vortices.

Advantages:

High head coefficient.

Application:

fluid transfer, e.g. fuel pumps.

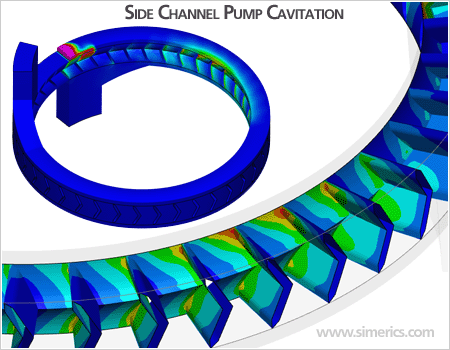

Side Channel Pump Cavitation
Side Channel Pump Pressure

PumpLinx: Solve Flows, Pressures, Cavitation, and Loads:

Discriminators:

  • Models cavitation
  • Accurate tip leakage
  • Superior treatment of rotating-stationary interfaces
  • Ease-of-use
  • Fast turn-around

Design Issues/Benefits:

  • Vane Design
  • Port design
  • Side channel design
  • Leakage reduction
  • Reduce Cavitation effects on efficiency and pump life
  • Reduce Pressure ripple and noise



EXAMPLE: Demonstration Side Channel Pump
Demonstration of PumpLinx capability to model the pumping of fuel (JP5) with a high vapor fraction.
Side Channel Pump Cavitation
