REVERSIBLE PUMP

Reversible Pump Design:

A reversible pump can effectively pump fluid in forward or backward directions simply by rotating the pump blades in opposite directions.

Advantages:

Ability to pump large volumes of fluid for low head bidirectional pumping station .

Application:

Fluid transfer.

Reversible Pump Grid
Reversible Pump Pressure
Reversible pump Cavitation

PumpLinx: Solve Flows, Pressures, Cavitation, and Loads:

Discriminators:

  • Models cavitation
  • Accurate tip leakage
  • Superior treatment of rotating-stationary interfaces
  • Ease-of-use
  • Fast turn-around

Design Issues/Benefits:

  • Stator and rotor design
  • Inlet/exit duct design
  • Tip/seal leakage analysis
  • Optimize performance
  • Reduce blade loads
  • Reduce cavitation effects on efficiency and pump life



EXAMPLE: Reversible Pump

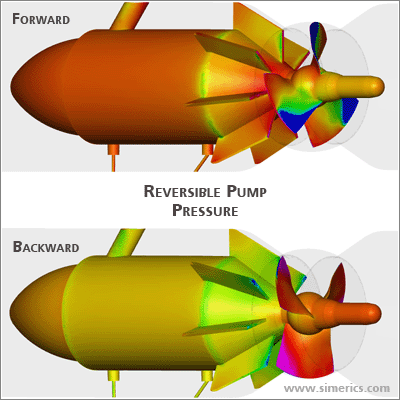

Simulation of pressure head for a high flowrate reversible pump.
Reversible Pump Pressure
