| Mixing |
MIXING TANK

Mixing Tank Design:

Rotating blades are used to stir and mix fluids.

Application:

A wide variety of industrial uses requiring the mixing of fluids.
Mixing Tank Solid Model
Mixing Tank Velocity
Mixing Tank Particle Tracing

Simerics: Solve Flows, Pressures, Cavitation, Turbulence and Loads:

Discriminators:

  • Superior treatment of rotating-stationary interfaces
  • Ease-of-use
  • Fast turn-around

Design Issues/Benefits:

  • Impeller and baffle design
  • Inlet/exit duct design
  • Mixing efficiency
  • Optimize performance


EXAMPLE: Mixing Tank
Simulation of a mixing tank with 3 impellers.

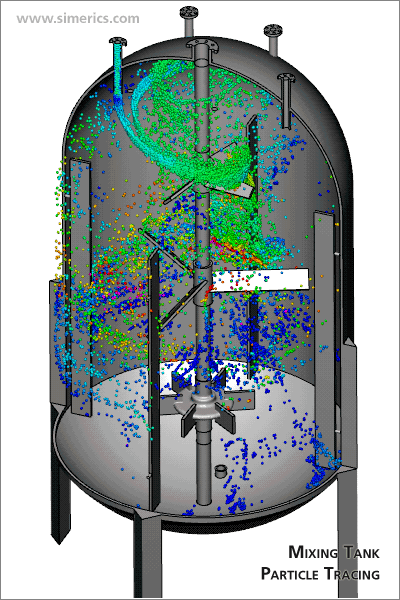

Mixing Tank Particle Tracing
| Mixing |
